UPC: 849055025640

ActionTrac 48.75" Powered Running Boards, Select Jeep Wrangler JL 2-Door #3034471

Loading Price....
  • ActionTrac 48.75" Powered Running Boards, Select Jeep Wrangler JL 2-Door
  • Patented step-within-a-step design for easier access, especially on large vehicles
  • 3" powered step automatically drops 8" when door opens, up to 15" below doorsill
  • 4" top step provides convenient access to the roof of the vehicle
  • Housing shields retractable step, pivot points and electronics from the elements
  • Contoured design helps protect the rocker panels from road debris and door dings
  • Simple-2-install system with no-drill brackets and no-splice wiring
  • Powder-coated 6061-T6 aluminum is durable, lightweight and non-corrosive
  • Integrated control module detects obstructions and eliminates pinch hazards
  • Single, rotary motor for fast, quiet, maintenance-free operation
  • Integrated LED lights activate on deployment for added visibility and safety
  • Rated for 650 lbs. static weight capacity (limited to mounting structure)
  • Limited lifetime warranty (five-year finish and three-year parts)
  • Assembled in USA
  • Patent# US 9771024, US 8833781, D718195, D751953
  • Door delete kit (#3020000, sold separately) is required when doors are removed

Notes:

  • Includes one pair of running boards, mounting hardware and wiring harness
  • These boards are not a substitute for rocker bars
  • 44" stepping surface, 48.75" overall length

Guides & Install Sheets

Product Videos

PRODUCT SPECIFICATIONS

  • Board Length49
  • FinishCARBIDE BLACK POWDER COAT
  • Hub WarehouseD25
  • Installation Time Exact0
  • MaterialAluminum
  • Mount Type DescriptionNot Applicable
  • Part TypeRunning Board Kit
  • Shipping Weight54.000
  • Side Application Type DescriptionNot Applicable
  • WarrantyLimited Lifetime Warranty (Five-Year Finish, Three-Year Parts)

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

ARIES ActionTrac™ boards are the next generation of power running boards. These side steps are unique from other power step designs because they feature a patented step-within-a-step™. They are equipped with a control module for safe, smooth, automated operation; they feature a no-splice and no-drill bracket installation; and they feature weather-resistant, powder-coated aluminum construction assembled right here in the USA.

ActionTrac™ powered running boards feature an innovative, patented step-within-a-step™ design for your offroad ride. The main housing has an integrated, non-skid stepping surface along the top edge and contours to the vehicle's rocker panels for a sleek, aftermarket look. When the door opens, the control module automatically deploys the 3" wide power step, offering an 8" drop from the 4" wide top step and up to 15" from the doorsill, depending on the application. The two steps combined make ActionTrac™ the perfect lifted truck steps, offering safer, easier entry and exit from the vehicle, particularly on larger Jeeps or trucks. They're also ideal for families with younger children and for elderly passengers. When the door closes again, the power step retracts to be safely concealed within the housing.

The control module of ActionTrac™ lifted truck steps automatically detects any obstructions during operation. This eliminates pinch hazards and avoids damage to the steps out on the trails. The power steps are also set with a two-second delay to avoid retracting too quickly after the door closes. For added safety and visibility, each set of power running boards is equipped with integrated LED lights that illuminate the power side steps upon opening.

Another unique advantage of ActionTrac™ running boards is their ease of installation. Each set of these power running boards is designed for vehicle-specific application, and they mount using pre-existing holes in the vehicle. This eliminates the need for drilling holes for the brackets and aligning the running boards during the installation process and significantly cuts down on installation time. This particular set of ActionTrac™ running boards is designed to fit specific years of the Jeep Wrangler JL 2-door (see application information to verify fitment with your vehicle).

ActionTrac™ powered running boards are engineered for off-roading. They are constructed with extruded 6061-T6 aluminum, making them lightweight, non-corrosive and very durable. They also feature a carbide black powder coat finish to maximize corrosion resistance. This enhanced construction, together with the contoured design of the running boards, provides extra protection for the sides of the vehicle from small rocks and other debris that might scratch or mar the vehicle's finish.

ActionTrac™ retractable running boards operate with a single rotary motor to ensure quiet, reliable, long-lasting, maintenance-free operation. The motor, pivot points and all electrical components are shielded within the main housing, further protecting them from the elements. Each set of running boards comes with a limited lifetime warranty and is assembled right here in the USA for the utmost quality.

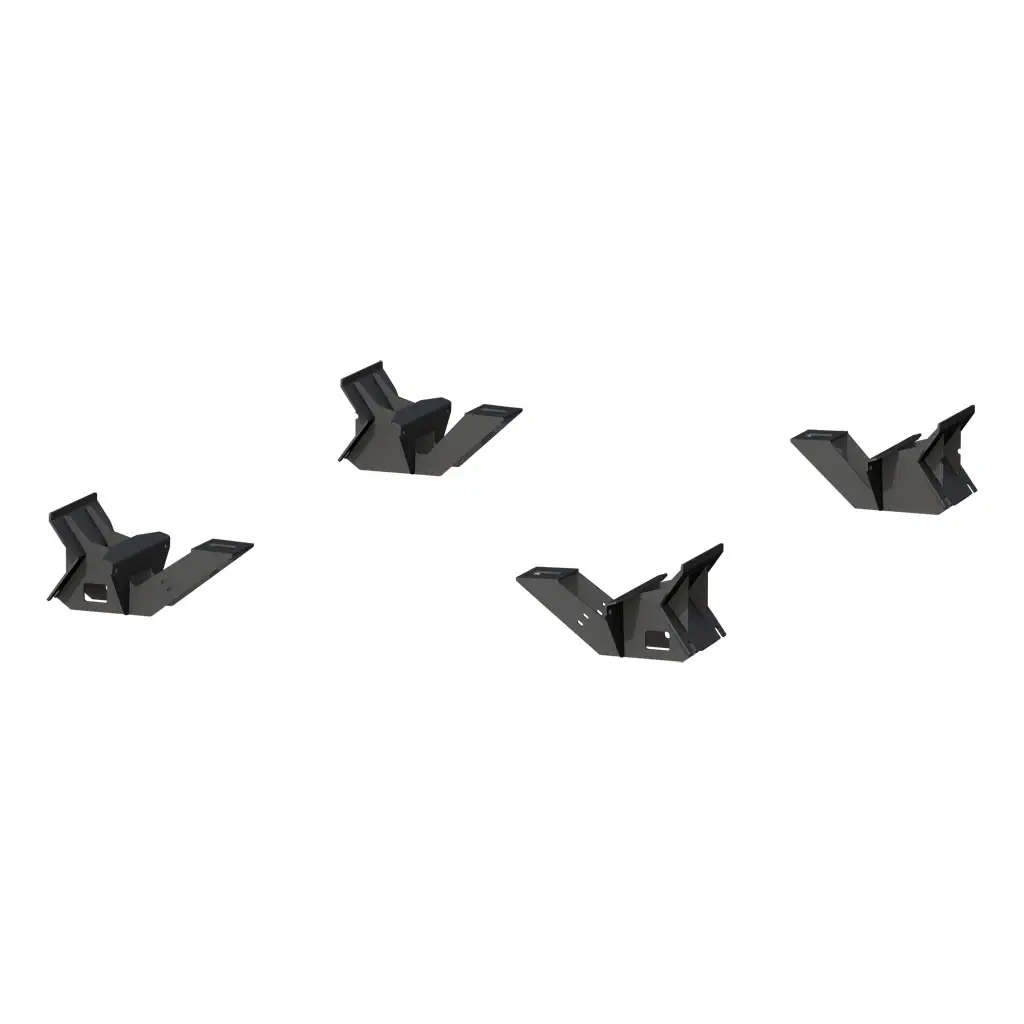

These Jeep Wrangler running boards come with mounting brackets and all necessary hardware and wiring for a complete installation.

7 COMPATIBLE VEHICLES
YEAR MAKE MODEL STYLE
2018 Jeep Wrangler JL, excluding Unlimited (2-door)
2019 Jeep Wrangler JL, excluding Unlimited (2-door)
2020 Jeep Wrangler JL, excluding Unlimited (2-door)
2021 Jeep Wrangler JL, excluding Unlimited (2-door)
2022 Jeep Wrangler JL, excluding Unlimited (2-door)
2023 Jeep Wrangler JL, excluding Unlimited (2-door)
2024 Jeep Wrangler JL, excluding Unlimited (2-door)
