ActionTrac Powered Running Boards (No Brackets)

Part #3025165UPC: 849055024865
Google Plus

ARIES ActionTrac™ boards are the next generation of power running boards. These side steps are unique from other power step designs because they feature a patented step-within-a-step™. They are equipped with a control module for safe, smooth, automated operation; they feature a no-splice and no-drill bracket installation; and they feature weather-resistant, powder-coated aluminum construction made right here in the USA.

NOTE: This package includes one pair of running boards only. Mounting brackets must be purchased separately or as part of a kit.

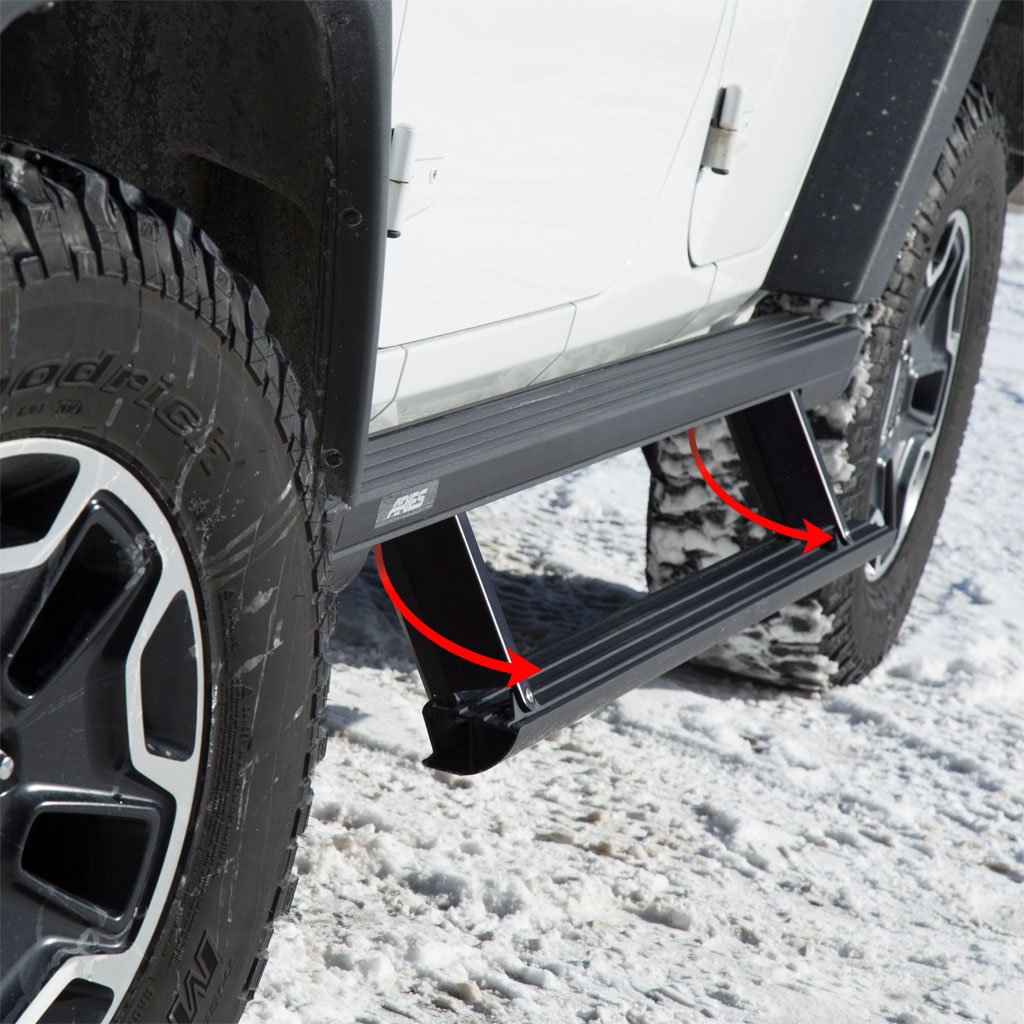

ActionTrac™ powered running boards feature an innovative, patented step-within-a-step™ design for your offroad truck or Jeep Wrangler. The main housing has an integrated, non-skid stepping surface along the top edge and contours to the vehicle's rocker panels for a sleek, aftermarket look. When the door opens, the control module automatically deploys the power step, offering an 8" drop from the top step and up to 15" from the doorsill, depending on the application. The two steps combined make ActionTrac™ the perfect lifted truck steps, offering safer, easier entry and exit from the vehicle, particularly on larger Jeeps or trucks. They're also ideal for families with younger children and for elderly passengers. When the door closes again, the power step retracts to be safely concealed within the housing.

The control module of ActionTrac™ lifted truck steps automatically detects any obstructions during operation. This eliminates pinch hazards and avoids damage to the steps out on the trails. The power steps are also set with a two-second delay to avoid retracting too quickly after the door closes. For added safety and visibility, each set of power running boards is equipped with integrated LED lights that illuminate the power side steps upon opening.

Another unique advantage of ActionTrac™ running boards is their ease of installation. Each set of these power running boards is designed for vehicle-specific application, and they mount using pre-existing holes in the vehicle. This eliminates the need for drilling holes for the brackets and aligning the running boards during the installation process and significantly cuts down on installation time.

ActionTrac™ powered running boards are engineered for the off-roading truck or Jeep Wrangler. They are constructed with extruded 6061-T6 aluminum, making them lightweight, non-corrosive and very durable. They also feature a carbide black powder coat finish to maximize corrosion resistance. This enhanced construction, together with the contoured design of the running boards, provides extra protection for the sides of the vehicle from small rocks and other debris that might scratch or mar the vehicle's finish.

ActionTrac™ retractable running boards operate with a single rotary motor to ensure quiet, reliable, long-lasting, maintenance-free operation. The motor, pivot points and all electrical components are shielded within the main housing, further protecting them from the elements. Each set of running boards comes with a limited lifetime warranty and is made right here in the USA for the utmost quality.

  • Patented step-within-a-step design for easier access, especially on large vehicles
  • Power step automatically drops 8" when door opens, up to 15" below the doorsill
  • Provides a wide, non-skid stepping surface on both the foldout and top step
  • Easy, no-drill bracket installation using pre-existing factory holes
  • Most plug-and-play system on the market with no factory wire splicing required
  • Housing protects power step, pivot points and electronics from water and debris
  • Powder-coated 6061-T6 aluminum is durable, lightweight and non-corrosive
  • Offers extra protection for the rocker panels from small stones and debris
  • Integrated control module detects obstructions and eliminates pinch hazard
  • Single, rotary motor for fast, quiet, maintenance-free operation
  • Integrated LED lights activate on deployment for added visibility and safety
  • Rated for 650 lbs. static weight capacity (limited to mounting structure)
  • Limited lifetime warranty
  • Made in USA

More Details

Includes one pair of running boards only (mounting brackets sold separately)

Patent# US 9771024, US 8833781, D718195, D751953

Technical Details

Board Length70
Shipping Weight52.000
Product Weight49.000
WarrantyLimited Lifetime
Mount Type DescriptionBlank
Side Application Type DescriptionBlank


Check out our Application Guides to see what fits your vehicle.

2018JeepWranglerUnlimited Rubicon
2018JeepWranglerUnlimited Sahara
2018JeepWranglerUnlimited Sport
2018JeepWranglerUnlimited Sport S
2018JeepWrangler JKUnlimited Rubicon
2018JeepWrangler JKUnlimited Sahara
2018JeepWrangler JKUnlimited Sport
2017JeepWranglerUnlimited Rubicon
2017JeepWranglerUnlimited Sahara
2017JeepWranglerUnlimited Sport
2016JeepWranglerUnlimited 75th Anniversary
2016JeepWranglerUnlimited Rubicon
2016JeepWranglerUnlimited Sahara
2016JeepWranglerUnlimited Sport
2016JeepWranglerUnlimited Sport S
2015JeepWranglerUnlimited Rubicon
2015JeepWranglerUnlimited Sahara
2015JeepWranglerUnlimited Sport
2014JeepWranglerUnlimited Rubicon
2014JeepWranglerUnlimited Sahara
2014JeepWranglerUnlimited Sport
2013JeepWranglerUnlimited Rubicon
2013JeepWranglerUnlimited Sahara
2013JeepWranglerUnlimited Sport
2012JeepWranglerUnlimited Rubicon
2012JeepWranglerUnlimited Sahara
2012JeepWranglerUnlimited Sport
2011JeepWranglerUnlimited 70th Anniversary
2011JeepWranglerUnlimited Rubicon
2011JeepWranglerUnlimited Sahara
2011JeepWranglerUnlimited Sport
2010JeepWranglerUnlimited Rubicon
2010JeepWranglerUnlimited Sahara
2010JeepWranglerUnlimited Sport
2010JeepWranglerUnlimited X
2009JeepWranglerUnlimited Rubicon
2009JeepWranglerUnlimited Sahara
2009JeepWranglerUnlimited X
2008JeepWranglerUnlimited Rubicon
2008JeepWranglerUnlimited Sahara
2008JeepWranglerUnlimited X
2007JeepWranglerUnlimited Rubicon
2007JeepWranglerUnlimited Sahara
2007JeepWranglerUnlimited X
